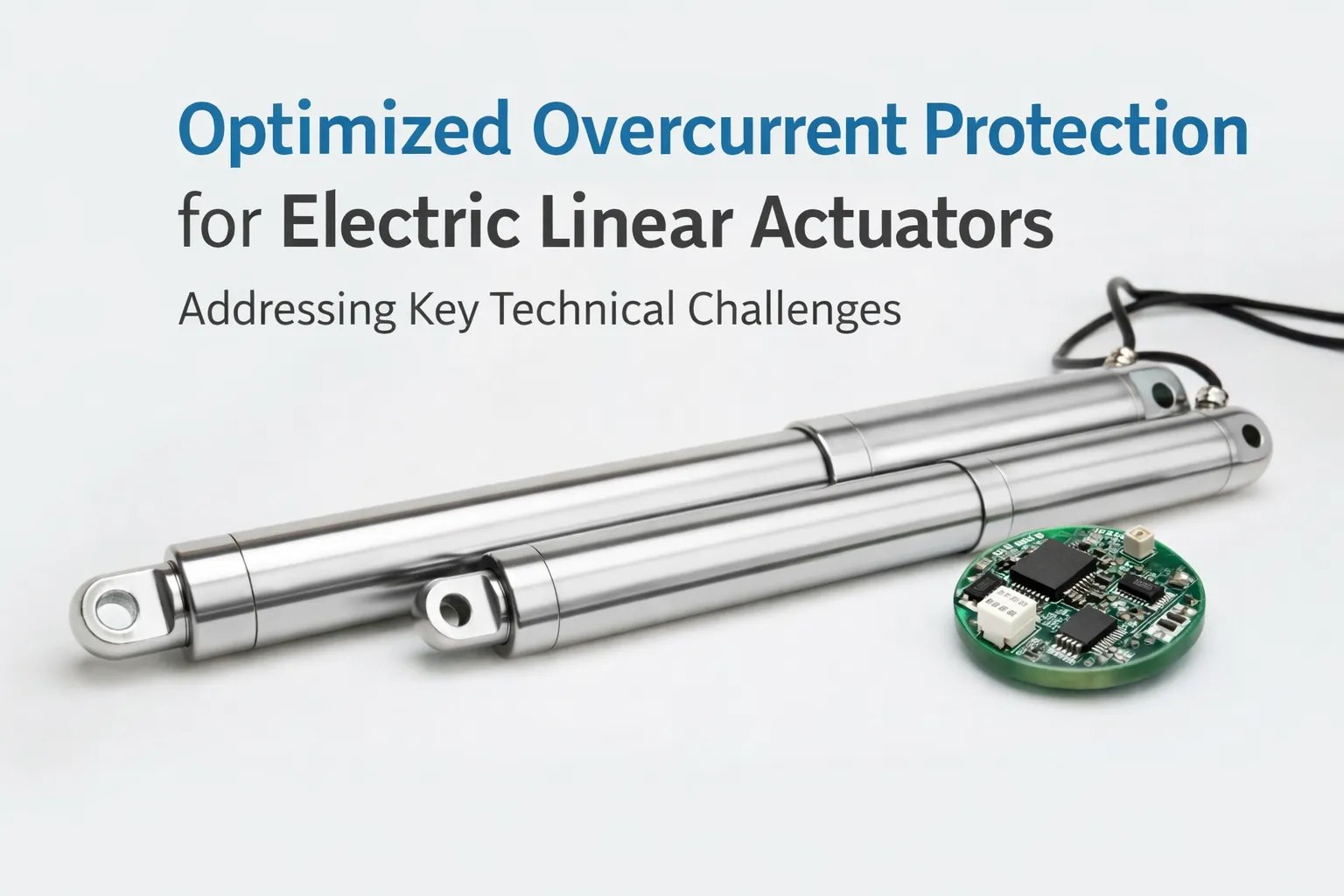

Optimized Overcurrent Protection for ANT-35 & ANT-38 Electric Linear Actuators: Enhancing Safety and Reliability

In modern RVs, yachts, and industrial automation systems, electric linear actuators play a critical role in automation and movement control. However, one technical challenge that often arises is overcurrent conditions, which can lead to actuator damage, reduced service life, and safety risks. To address this, Antuator has successfully optimized the ANT-35 and ANT-38 overcurrent protection boards, providing a reliable solution for actuator safety while maintaining cost efficiency.

Understanding the Technical Challenges of Overcurrent in Actuators

Electric linear actuators, especially those used in RV leveling systems, pop-up roofs, or marine applications, face dynamic loads during operation. Common overcurrent scenarios include:

1. Motor Stall or Obstruction – When a linear actuator encounters a mechanical block, the motor may draw excessive current, risking burn-out or damage.
2. Voltage Fluctuations – Systems running on DC 12V–24V often experience voltage variations that can trigger overcurrent conditions.
3. Load Variability – Depending on installation, the actuator may face varying resistance, requiring adaptive protection.

Without proper protection, these factors can cause permanent actuator damage, control system faults, or safety hazards.

How ANT-35 and ANT-38 Overcurrent Protection Optimizations Solve These Problems

Antuator’s newly optimized ANT-35/38 overcurrent protection boards address these challenges with a combination of precision engineering, cost-efficient design, and strict compliance with actuator performance requirements.

Key Features and Benefits

• Wide Voltage Compatibility: Works reliably across DC 9V–30V systems, suitable for most RV and marine applications.
• Adjustable Overcurrent Protection:
  • ANT-35: 0.5A–5.0A adjustable range
  • ANT-38: 0.5A–5.0A adjustable range
  • Ensures adaptability to different actuator loads and system designs.
• Fast Response Time: Protection triggers within 50ms to prevent motor or PCB damage.
• Polarity-Free Input: Simplifies installation and reduces wiring errors.
• Compact, Cost-Efficient Design:
  • ANT-35: 28mm diameter, ≤18mm height
  • ANT-38: 28mm diameter, ≤18mm height
• Compatibility: Fully compatible with existing actuator bottom boards and system designs, reducing retrofitting issues.
• Enhanced Reliability: Design improvements solve common pain points such as static current mismatch, PCB layout conflicts, and component placement issues.

Real-World Applications

1. RV Roof and Slide-Out Systems – The optimized protection ensures smooth operation of roof lifts and slide mechanisms without risk of overcurrent failure during heavy load or obstruction.
2. Marine Automation – For yachts, the ANT-35/38 boards protect actuators used in hatches, windows, or trim tabs, even in harsh environments with variable voltages and vibrations.
3. Industrial Automation – Actuators in machinery benefit from fast overcurrent response, ensuring process reliability and equipment safety.

Why This Matters for Customers

With the optimized ANT-35 and ANT-38 overcurrent protection boards, Antuator delivers:

• Peace of Mind: Reduced risk of actuator damage and maintenance costs.
• Adaptability: Supports a wide range of actuator models and installation scenarios.
• Cost Efficiency: Optimized board design balances protection, size, and cost for OEMs and aftermarket solutions.
• Market Confidence: Already verified with extensive testing, including integration with ANT35/38 actuators and control systems.

Conclusion

Overcurrent is a critical factor affecting the performance and longevity of electric linear actuators. Antuator’s ANT-35 and ANT-38 overcurrent protection optimizations provide a reliable, adjustable, and compact solution, helping RV, marine, and industrial customers maintain actuator safety, performance, and compliance.

For more technical details or to request sample boards, please contact us
